1500 L vertical air receiver, painted, 12 bar
A 1500 litre vertical air receiver covers sustained draws, the kind that last minutes rather than seconds. Variable load plant pulls hard in bursts, and this volume absorbs those bursts before the compressor has to load. Switching frequency drops, which matters most on fixed speed machines with a minimum run timer. At 320 kg empty and 1000 mm across, it needs a level, load bearing floor.
Carbon steel construction under a blue RAL 5015 paint finish, rated for compressed air and nitrogen (group 2) at 12 bar between -10 °C to +120 °C. The 1000 mm shell needs about 0.79 m² of clear floor and 2305 mm of height including the feet. Main ports are 2"; the gauge port is 1/2".
The vessel is certified to directive 2014/68/UE (PED). Order under article number 3004810330.
Key specifications
| Capacity | 1500 litres |
| Working pressure | 12 bar |
| Temperature range | -10 °C to +120 °C |
| Medium | compressed air, nitrogen (group 2) |
| Diameter | 1000 mm |
| Height | 2305 mm |
| Connections | 2" main ports, 1/2" gauge port |
| Finish | carbon steel, RAL 5015 blue paint |
| Weight | 320 kg |
| Certification | 2014/68/UE (PED) |
Dimensions and connections

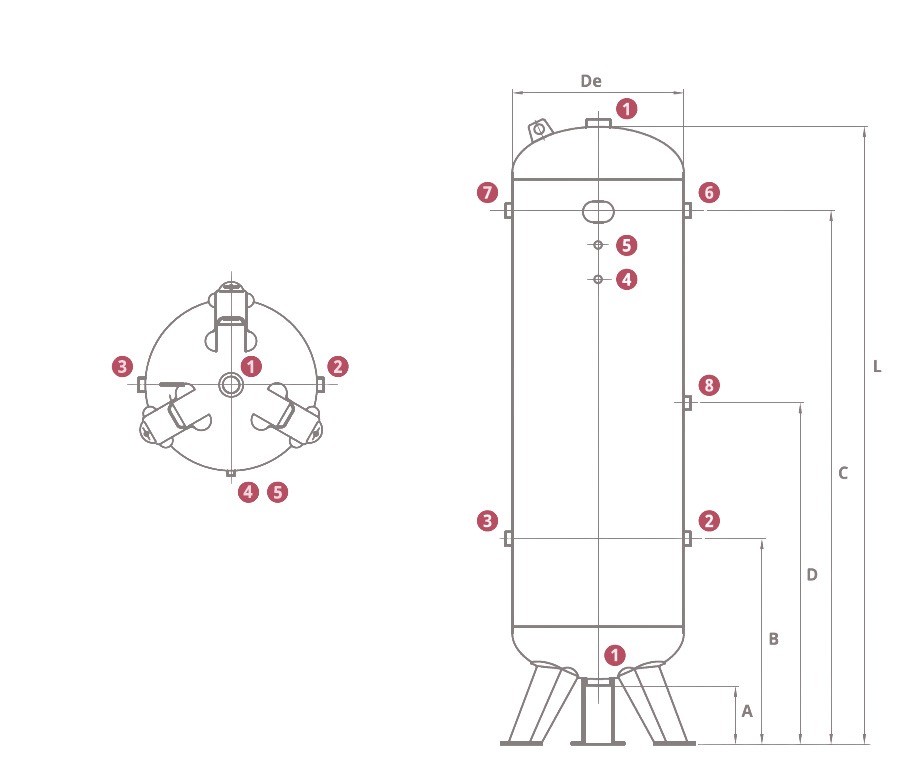

Letters and numbers below refer to the reference drawing.
| Dimensions | |
|---|---|
| De (diameter) | 1000 mm |
| A | 170 mm |
| B | 680 mm |
| C | 1780 mm |
| D | n/a |
| L (total height) | 2305 mm |
| Connections | |
|---|---|
| 1, 2, 3, 6, 7 | 2" |
| 4, 5 | 1/2" |
| 8 | not fitted |
| Edmac/OEM | Edmac |
|---|---|
| Brand | Edmac |
| Stocked at Edmac | No |
| Subcategory | Pressure Vessels (Air Tanks) |
| Finishing | Painted RAL5015 |
| Min. Working Temperature | -10 |
| Max. Working Temperature | 50 |
| Min. Pressure (bar) | 12 |
| Max. Pressure (bar) | 16 |
| Main Air Conn. ("") | 2" |
| Manometric Conn. ("") | 1/2" |
| Height A (mm) | 170 |
| Height L (mm) | 2305 |
| Volume (l) | 1500 |
| SKU | 3004810330 |
